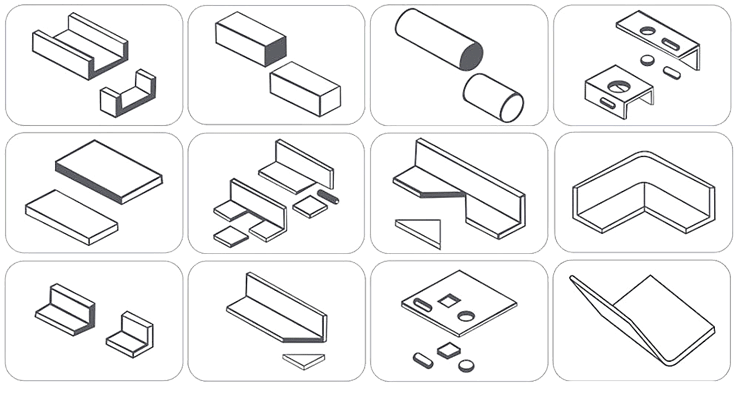

SCHEMATIC PICTURE:
TECHNICAL PARAMETERS:
| Model | Q35Y-20 |
| Punching Pressure(T) | 90T |
| Max.cutting Thickness(mm) | 20 |
| Material Strength(N/MM²） | ≦450 |
| Angle of Shear (°) | 8° |
| Flat Bar Shearing (T×W)(mm) | 20×330 10×480 |
| Slider Stroke (mm) | 80 |
| Trips Frequency(times/min) | 12/20 |
| Depth of Throat (mm) | 355 |
| Punching Depth(mm) | 20 |
| Max.punching Diameter(mm) | 30 |
| Motor Power(KW) | 7.5 |
| Overall Dimensions(L×W×H)（mm） | 1950*900*1950 |
